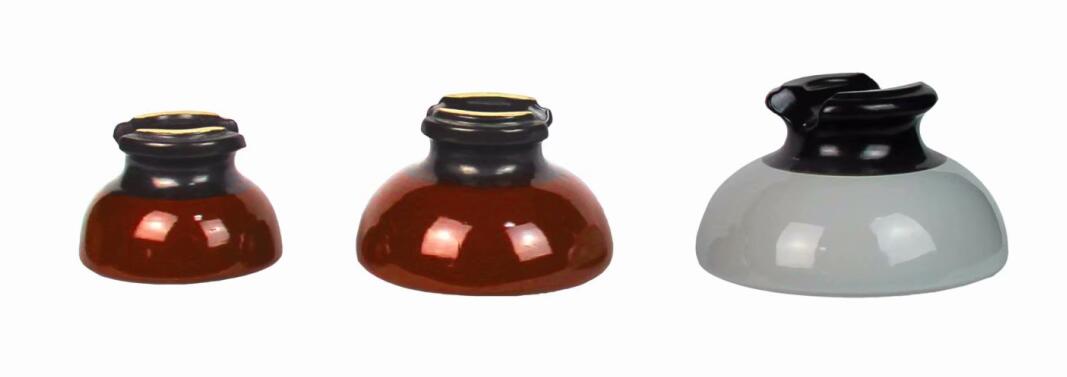

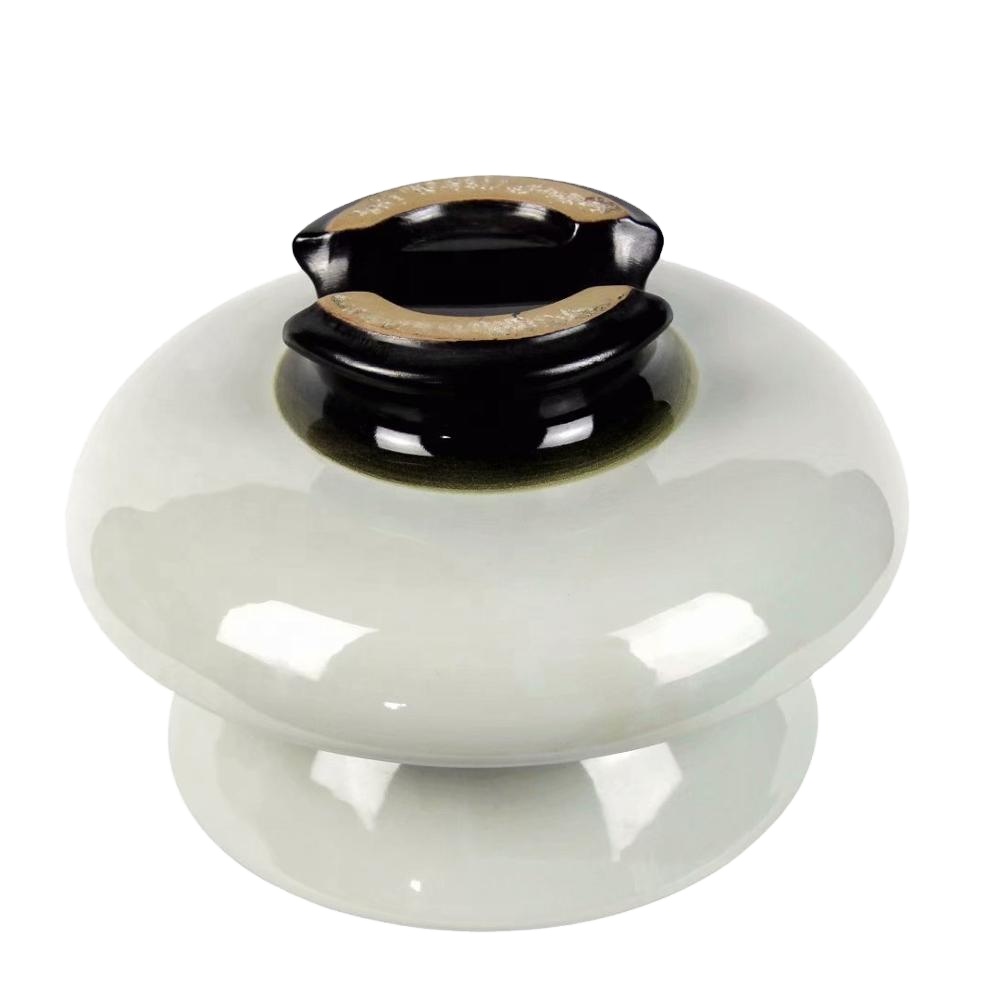

33KV High Quality Porcelain Material Pin Type Insulator

Insulators are a special type of insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telephone poles. They were slowly developed at the end of high-type high-voltage wire connection towers. A lot of disk-shaped insulators were hung on it. It was designed to increase the creepage distance. Insulators should not fail due to various electromechanical stresses caused by changes in environmental and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.

Porcelain surface generally painted white glaze, brown glaze, according to the need to draw other glaze. The surface of iron cap and steel foot is all hot-dip galvanized. The push-pull type elastic locking pin of ball-type connection has two types: w-type and r-type, both of which are made of tin bronze, brass and austenitic stainless steel. Grooved cylindrical and hunchback cotter pins, the former having a hot zinc surface and the latter made of brass. The elastic locking pin, cylinder pin and other parts are supplied with complete sets of products.

Insulator according to the connection points ball type and trough type two kinds.

The same strength grade of regular and fouling resistance type insulator, using the same size ball and socket connections, can guarantee the swap.

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.

1.Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

2.Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.

3.Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier

who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.

Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
