AAC All Aluminum Conductor 1033.5 MCM Bluebell Overhead Lines

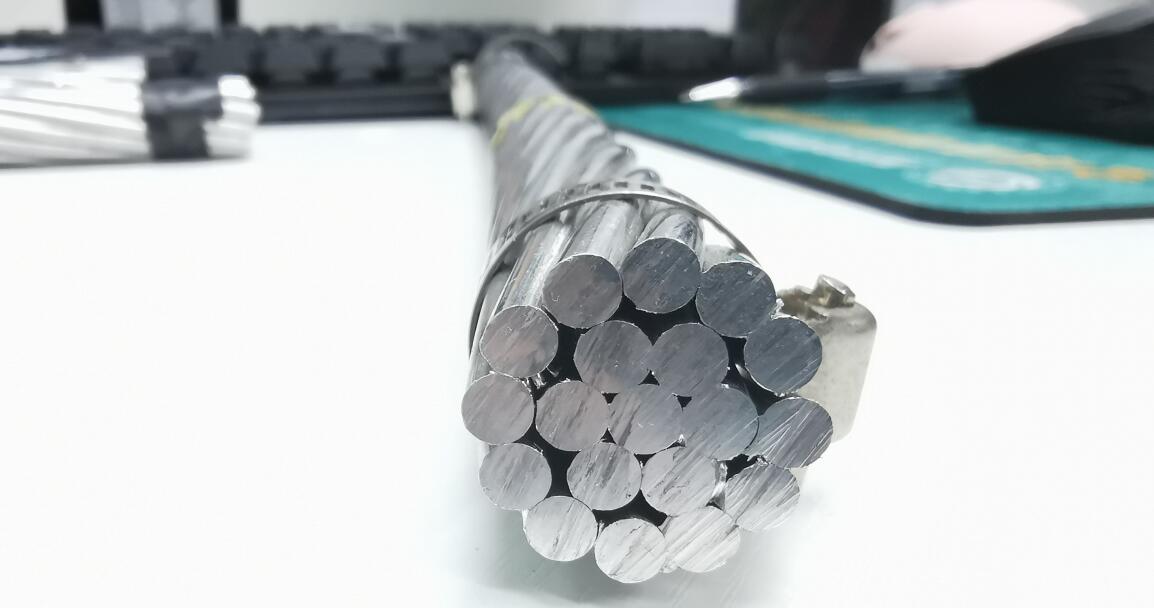

1033.5 MCM Bluebell AAC All Aluminum Conductor

What is 1033.5 MCM Bluebell AAC Cable ?

1033.5 MCM Bluebell AAC Cable is manufactured from electrolytically refined (E.C.GRADE) aluminium, having purity of minimum 99.5% of aluminium. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. These conductors are also used extensively in costal because it has a very high degree of corrosion resistance

1033.5 MCM Bluebell AAC Cable Specifications:

Size AWG:	1033.5
Stranding:	37
Stranding Class:	AA
Diameter Individual Wire Aluminum (Inches):	0.1671
Diameter Complete Cable (O.D.) (Inches):	1.17
Cross Sectional Area (Sq. Inches):	0.8117
Weight Per 1000ft Total (Lbs.):	970.2
Rated Breaking Strength (Lbs.):	17700
Resistance DC 20°C Per 1000ft:	0.0167
Resistance DC 75°C Per 1000ft:	0.021
Allowable Ampacity 90C (Amps):	1031 Amps

1033.5 MCM Bluebell AAC Cable Application

1033.5 MCM Bluebell AAC Cable can be used in low and medium voltage overhead lines. It’s commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor’s durability.1033.5 MCM Bluebell AAC Cable can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.

AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

1033.5 MCM Bluebell AAC Cable Standards:

ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.

ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.
