MC Nylon Bullwheel 2X55 / 1X100 Transmission Line Stringing Equipment Cable Puller Tensioner

Product Introduction

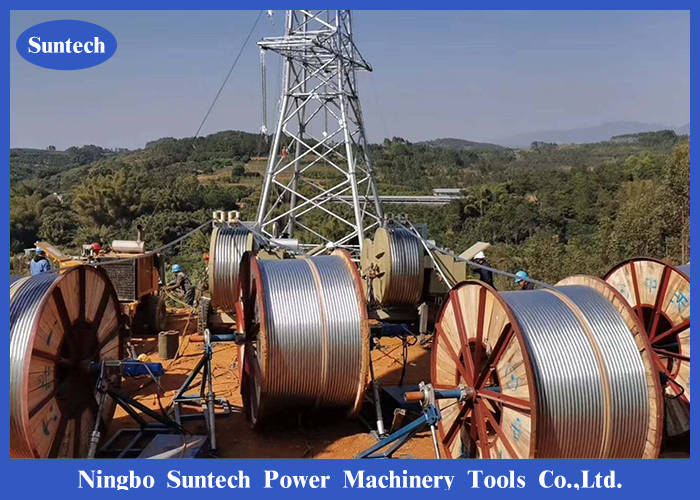

The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.

We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.

• Essential parameter

• Maximum Tension(kN)	2×55 or 1×110
  Continuous Tension(kN)	2×50 or 1×100
  Maximum speed (km/h)	5
  Bull wheel bottom of groove diameter(mm)	Φ1600
  Number of grooves:	2×5
  Maximum pull-back (kN)	2×50 or 1×100
  Maximum pull-back speed(km/h)	2×2.1
  Maximum suitable conductor diameter (mm)	Φ42.5
  Engine power /speed (kW/rpm)	54/2500
  Dimensions (mm):	5000×2240×2730
  Weight(kg)	7500

• Main Configurations

  Engine	Beinei Deutz air cooled diesel engine
  Main Pump/Motor	Rexroth (BOSCH)
  Main Hydraulic Valve	Rexroth (BOSCH)
  Reducer	RR (Italian)
  Radiator	AKG
  Hydraulic Instrument	WIKA

Description

a. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv tractiong rope,LGJ series,etc.).

b. This machine has a set of tension early warning system,which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.

c. Tension or pulling force can be preset,spring applied brake,reliable overhead protection mechanism,easy to operate.

Application

30KN Hydraulic wire tension device adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable etc .

Feature

Bullwheel with wearproof MC nylon lining segments.

infinitely variable tension control and constant tension conductor stringing .

spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety

attached hydraulic power output interface to connect hydraulic reel stand .

Main component

Engine : Cummines water-cooled engine .

Main pump/motor :Rexroth (BOSCH)

Reducer :RR(Italian )

Hydraulic valve:Rexroth (BOSCH)

radiator:AKG

hydraulic instrument:
