LGJ240/55 ACSR Conductor Splicing Sleeves 45mm

Ask Lasest Price
Brand Name :	Newart
Certification :	ISO
Price :	Get Latest Price
Delivery Time :	35days after payment
Payment Terms :	30% T/T as deposit,balance before delivery time
Supply Ability :	5000pcs/month

Add to Cart

Product Details
Company Profile

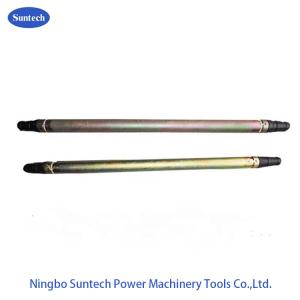

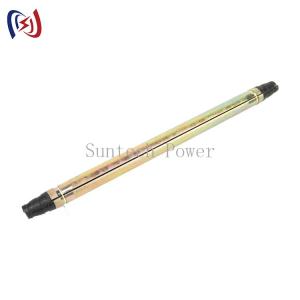

LGJ240/55 ACSR Conductor Splicing Sleeves 45mm

Splice Protection Sleeve Splicing Sleeves for ACSR Conductor

Introduction

Apply to protecting wire pressure tube on ACSR releasing and make it avoid torsion when pass

through pulleys. If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.

Notes

Please writing the dimension of splice in contact if the splicing sleeve differ from standard.

Technical Data

Item number	Model	Main size(MM)				Application conductor(MAX)
Item number	Model	D	L	d	L1	Application conductor(MAX)
17201	J240B	Φ45	850	Φ38	530	LGJ240/55
17202	J300B	Φ51	940	Φ43	600	LGJ300/50
17203	J400B	Φ57	995	Φ47	665	LGJ400/50
17204	J500B	Φ68	1080	Φ56	740	LGJ500/65
17205	J630B	Φ83	1180	Φ63	800	LGJ630/55
17206	J720B	Φ83	1196	Φ63	816	LGJ720/55
17207	J900B	Φ89	1180	Φ73	800	LGJ900/75
17208	J1000B	Φ95	1400	Φ75	1020	LGJ1000/80
17209	JBZ1250	Φ114	2280	Φ86	1190	JL1/G2A-1250

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
